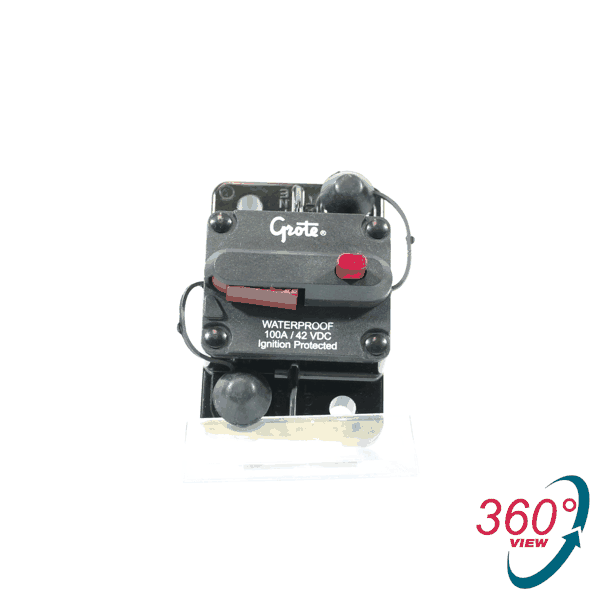

High Amperage Thermal Circuit Breakers, Single Rate, 100A

GRT-82-2178
BRAND Grote
Calculating price...
QUANTITY

About this item

Our high amperage thermal circuit breakers range from 40A to 200A. These circuit breakers are designed to protect your vehicle's electrical system from overcurrent, overload, and short circuit situations. All products in this category are waterproof.

Can be used in auxiliary and accessory circuits
UL Rated 94V – 0 housing
trucks, buses, RV and marine applications
Also used as battery chargers and DC audio systems
Single Pole
Thermoplastic
Surface Mount, Type III
1/4” – 28 thread studs
Stud insulators provided

There are currently no resources for this product.

Color Black
Material Thermoplastic
Operating Temperature -40°C (-40°F) to 85°C (185°F)
Prop 65 Label Required Y
Standards SAE J1171,SAE J1625,UL Rated - Housing
Style High Amperage
Type Manual-Reset,Type III
Voltage 42 VDC
